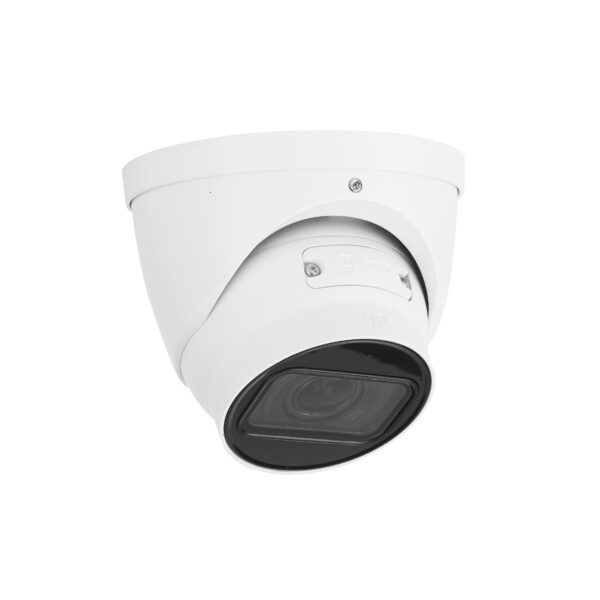

Ultra Low Light 4MP Starlight IR Turret IP Wired Camera S3 Version Vari-focal 2.7mm-12mm Lens, Built-in Mic, Support POE and ePOE, Vehicle and Human Detection, IPC-T54IR-ZE-S3

IPC-T54IR-ZE-S3 4MP IR Vari-focal Eyeball Network Camera

• 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.

•  Outputs max. 4MP (2688×1520) @25/30 fps.

• Built-in IR LED, and the max. illumination distance is 40 m.

• ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.

• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

• With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.

• Supports max. 512 GB Micro SD card, built-in MIC.

• 12 VDC/PoE power supply; ePoE.

• IP67 protection.

• SMD 3.0.

Camera

• Image Sensor: 1/1.8″ CMOS
• Max. Resolution: 2688 (H) × 1520 (V)
• RAM/ROM: 4GB/1GB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Minimum Illumination:
  • 0.0007 lux@F1.8 (Color, 30 IRE)
  • 0.0004 lux@F1.8 (B/W, 30 IRE)
  • 0 lux (Illuminator on)
• S/N Ratio: >56 dB
• Illumination Distance: 40 m (131.2 ft) (IR LED)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number: 2 (IR LED)
• Angle Adjustment
  • Pan: 0°–360°
  • Tilt: 0°–78°
  • Rotation: 0°–360°

Lens

• Lens Type: Motorized vari-focal
• Mount Type: φ14
• Focal Length: 2.7 mm-12 mm
• Max. Aperture: F1.8
• Field of View: Horizontal:
  • H: 115°–47°;
  • V: 62°–27°;
  • D: 137°–54°
• Iris Type: Auto
• Close Focus Distance: 1.5 m (4.92 ft)

Intelligence

• IVS (Perimeter Protection): Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
• Smart Object Detection: Smart abandoned object; smart missing object
• SMD 3.0: Less false alarm, longer detection distance
• AI SSA: Yes
• Face Detection: Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
• People Counting: Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
• Heat Map: Yes
• Video Metadata:
  • Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
  • Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
    Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
  • Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
  • Face attributes: gender, age, expressions, glasses, face mask and beard.
• Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec: Smart H.265+; Smart H.264+
• AI Coding: AI H.265; AI H.264
• Video Frame Rate:
  • Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps)
  • Sub stream: D1@(1–25/30 fps)
  • Third stream: 1080p@(1–25/30 fps)
  • Fourth stream: 720p@(1–25/30 fps)
• Stream Capability: 4 streams
• Resolution:
  • 4M (2688 × 1520);
  • 3.6M (2560 × 1440);
  • 3M (2048 × 1536);
  • 3M (2304 × 1296);
  • 1080p (1920 × 1080);
  • 1.3M (1280 × 960);
  • 720p (1280 × 720);
  • D1 (704 × 576/704 × 480);
  • VGA (640 × 480);
  • CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate: H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11008 kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 140 dB
• Scene Self-adaptation (SSA): Yes
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Image Stabilization: Electronic Image Stabilization (EIS)
• Smart Illumination: Yes
• Defog: Yes
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
• Mirror: Yes
• Privacy Masking: 8 areas

Audio

• Built-in MIC: Yes
• Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723

Network

• Network: RJ-45 (10/100 Enhancement Base-T)
• SDK and API: Yes
• Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
• User/Host: 20 (Total bandwidth: 80 M)
• Storage : FTP; SFTP; Micro SD card (support max. 512 GB); NAS
• Browser :
  • IE: IE 9 and later
  • Chrome: Chrome 102 and later
  • Firefox: Firefox 88 and later
• Mobile Phone: IOS; Android

Power

• Power Supply: 12 VDC/PoE (802.3af)/ePoE
• Power Consumption : Basic: 3.5 W (12 VDC); 4.5 W (PoE)
  Max. (H.265+ WDR+ Intelligence on+IR on): 6.7 W (12 VDC); 8.2 W (PoE)

Structure

• Casing Material: Metal
• Product Dimensions: 108.3 mm × Φ122 mm (4.26″ × Φ4.80″)
• Net Weight: 0.70 kg (1.54 lb)
• Gross Weight: 0.96 kg (2.12 lb)
